In today’s manufacturing sector, irregular edge banding machines are essential in industries such as furniture, food packaging, and metal processing. These machines are designed for edge banding, can sealing, and edge-spinning needs, addressing complex shape processing challenges that traditional equipment cannot handle.
Different types of irregular edge banding machines are meeting the diverse needs of various industries, including heat transfer edge banding and vacuum-sealed cans, each with unique technical features.
Heat Transfer Edge Banding Machines
Heat transfer irregular edge banding machines are used for edge banding irregularly shaped wood or boards in furniture manufacturing and handicrafts. These machines integrate milling, grinding, sanding, and heat transfer processes, allowing complex shapes to be banded in a single operation.
Typically, these machines feature a 2.5 kW milling head motor with speeds up to 12,000 rpm. The maximum edge banding thickness can reach 55 mm, and the working feed speed is adjustable between 0 and 8 m/min. Silicone hot stamping wheels, resistant to temperatures up to 200°C, apply transfer film onto sheet edges, ensuring precise temperature control between 170-220°C.
The integrated electromechanical design includes a pressure roller structure above the conveyor belt, stabilizing the sheet material during processing and guaranteeing sealing quality.
Vacuum Can Sealing Machines
The vacuum irregular shape can sealing machine is designed for tinplate and aluminum alloy cans used in the food and chemical industries. It seals non-circular cans, such as elliptical, square, and horseshoe shapes.
This machine features pre-sealing and main sealing processes, preventing liquid spillage during transport. It can seal up to 50 cans per minute, with a sealing head speed of 360 rpm. It accommodates can diameters from 170-180 mm and heights from 35-150 mm, with a 1.1-2.2 kW motor. The sealing process is controlled by a contour-following drive device, ensuring precision and safety.
Edge-Spinning and Stretching Equipment

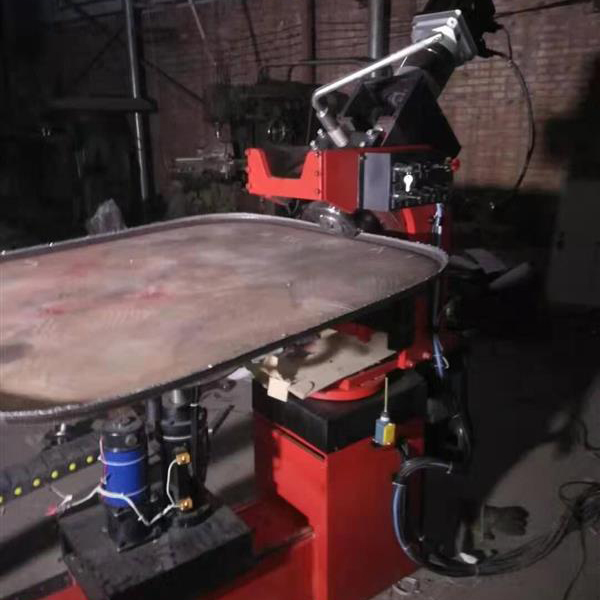

Shaped end edge-spinning machines and stretching hydraulic presses are key equipment for metal container and pressure vessel manufacturing. The automatic shaped end edge-spinning machine processes plate thicknesses from 3 to 8 mm and diameters from 1200 to 3000 mm (customizable up to 15,000 mm). These machines use PLC control, servo motors, and planetary reduction gears to achieve precise edge-spinning.
The head-stretching hydraulic press is used for metal head forming, with a nominal pressure of up to 1000 tons and a 148 kW motor. The three-beam, four-column structure ensures stability during the stretching process.
Technical Future
Technological advancements in irregular-shaped head-spinning equipment continue to push the boundaries of automation and precision. The application of PLC control, servo drive systems, and contouring devices is improving the efficiency and quality of edge-sealing, can-sealing, and edge-spinning operations.
As the demand for processing irregularly shaped parts increases, innovations in specialized equipment will drive improvements in product quality and production efficiency.
